If you shoot with a monochrome astro camera, a filter wheel is the upgrade that turns a tedious imaging session into a smooth one. Instead of unscrewing filters in the dark and refocusing between every frame, you rotate a wheel and keep shooting. After comparing the current options, three wheels stand out for different reasons. The Astromania 1.25-Inch Filter Wheel with LRGB Filters is my top pick for mono imagers because it bundles the four filters a monochrome sensor actually needs — luminance, red, green, and blue — at a price that leaves room in the budget for a mount upgrade. The SVBONY SV133 is the premium choice for anyone building around 2-inch filters, with a light-tight aluminum housing and a full adapter kit. The basic Astromania 1.25-Inch wheel earns its spot as the value and visual-observing pick, since it holds five filters and works for both eyepiece and camera use. The main tradeoffs you will weigh are filter size (1.25 vs. 2 inch), back-focus requirements, and whether you want filters included or already own a set.
Get pool and patio gear delivered free — and shop member deals
- Fast, free delivery on millions of items
- Access to Prime Big Deal Days deals on October 6–7
- Prime Video, Amazon Music and more included
Complete the kit
Key Takeaways
- The Astromania LRGB bundle is the only pick here that includes the four filters a monochrome camera needs, making it the strongest value for mono imagers starting from zero.
- Back-focus is the hidden dealbreaker: these wheels need 20–23 mm of inward focus travel, which can rule out some Newtonian reflectors.
- The SVBONY SV133 is the only 2-inch option in this lineup, which matters if you use a large mono sensor where 1.25-inch filters cause vignetting.
- All three wheels attach via either a 1.25-inch nosepiece or a T-thread, so they fit most cameras and focusers without extra purchases.
- If you already own a filter set, the basic Astromania wheel holds five filters for less than the LRGB bundle costs.
- The SV133’s missing M48-to-M42 adapter means mono camera owners with M42 threads may need one extra part before first light.
| Astromania 1.25-Inch 5-Position Telescope Filter Wheel with LRGB Filters |  | Best Overall for Mono Cameras | Filter size: 1.25 inches | Filter positions: 5 (4 threaded, 1 open) | Included filters: Red, green, blue, and luminance (LRGB) | VIEW ON AMAZON | See Our Full Breakdown |
| SVBONY SV133 2-Inch 5-Position Telescope Filter Wheel |  | Best Premium Pick for Large Sensors | Filter size: 2 inches | Filter positions: 5 | Housing: Aluminum, light-tight | VIEW ON AMAZON | See Our Full Breakdown |
| Astromania 1.25-Inch Telescope Filter Wheel with T2 and Eyepiece Adapters |  | Best Value and Best for Dual Visual Use | Filter positions: 5 | Compatible filter size: 1.25 inches | Included adapters: Eyepiece adapter, nosepiece, T2 camera adapter | VIEW ON AMAZON | See Our Full Breakdown |
| filter wheels and filter sets for mono camera | Filter positions | Brand | Filter size | Weight |
|---|---|---|---|---|
| Astromania 1.25-Inch 5-Positio | 5 (4 threaded, 1 open) | Astromania | 1.25 inches | — |
| SVBONY SV133 2-Inch 5-Position | 5 | SVBONY | 2 inches | 1.9 pounds |
| Astromania 1.25-Inch Telescope | 5 | Astromania | — | 13.37 ounces |
More Details on Our Top Picks
Astromania 1.25-Inch 5-Position Telescope Filter Wheel with LRGB Filters
This is the pick that makes the most sense for a monochrome imaging setup, and the reason is simple: it arrives with the four filters a mono camera cannot produce color without. Luminance, red, green, and blue filters come pre-loaded-ready in the box, which means one purchase covers both the mechanical switching problem and the filter collection problem. Compared with the basic Astromania wheel, this model gives up one usable filter slot — four threaded positions plus an empty fifth — but in exchange you skip the separate filter shopping trip that typically costs more than a wheel alone.
The aluminum housing is a genuine advantage over plastic-bodied wheels at this level. It resists flexure when the wheel hangs off a focuser under a heavy camera, and it keeps the filter plane stable between exposures — something that matters more for mono imaging than casual visual use, since any tilt degrades star shapes across the frame. Attachment options match its sibling: a 1.25-inch nosepiece for visual work or a T-thread connection for a direct, rigid coupling to a mono camera body. The T-thread route is the one I would point mono imagers toward, because a threaded connection eliminates the wobble a nosepiece can introduce during long exposures.
The tradeoff is the same one that affects every wheel in this comparison: it demands 20 mm of additional focus travel. That is slightly friendlier than the 23 mm the basic Astromania requires, but it is still enough to cause trouble on short-travel focusers and some Newtonian reflectors. Check your focuser’s available inward travel before committing. The filters themselves are entry-level LRGB — capable of producing satisfying color images, though not on par with premium astro filters for narrowband-adjacent work. For a mono imager building a first serious setup, though, this bundle stands out as the most complete path from unboxing to shooting LRGB frames the same night.
Pros:- Includes red, green, blue, and luminance filters for immediate mono imaging
- Switches filters without removing the camera or eyepiece
- Sturdy aluminum construction resists flexure under camera weight
- Connects via 1.25-inch nosepiece or T-thread for a rigid camera coupling
Cons:- Requires an additional 20 mm of focus travel
- Only four of the five positions are usable for filters
- Included LRGB filters are entry-level rather than premium glass
Best for: Mono camera imagers who need a wheel and a complete LRGB filter set in a single purchase
Not ideal for: Owners of larger mono sensors who need 2-inch filters to avoid vignetting, or telescopes with under 20 mm of spare focus travel
- Filter size:1.25 inches
- Filter positions:5 (4 threaded, 1 open)
- Included filters:Red, green, blue, and luminance (LRGB)
- Construction:Aluminum
- Attachment options:1.25-inch nosepiece or T-thread
- Additional focus travel required:20 mm
- Brand:Astromania
Our verdict“The most complete package for monochrome imaging — a solid aluminum wheel plus the four filters a mono sensor needs, all in one box.”
SVBONY SV133 2-Inch 5-Position Telescope Filter Wheel
The SV133 occupies a different tier from the two Astromania wheels, and its role here is specific: it is the pick for imagers whose mono sensors are large enough that 1.25-inch filters cause vignetting. If you are running a sensor with a diagonal approaching or exceeding the clear aperture of a 1.25-inch filter, stepping up to a 2-inch wheel is not a luxury — it is the difference between even illumination and darkened corners on every color frame. That alone explains why this model sits at the premium end of this lineup despite having no filters in the box.
Where the Astromania LRGB bundle wins on completeness, the SV133 wins on build and light control. Its aluminum housing is designed to be light-tight, blocking the stray light and internal reflections that can fog long mono exposures — a problem budget wheels sometimes ignore entirely. It also arrives with a genuinely useful accessory kit: a 2-inch eyepiece adapter, a focuser nosepiece, a conversion interface, and an M48 camera adapter, so most setups connect without extra shopping. The numbered wheel makes it easy to log which filter position each subframe used, which matters when you are batching luminance and color frames separately, and a rotation lock ring keeps the selected position firmly seated during long exposures.
Two drawbacks deserve honest attention. First, the M48-to-M42 adapter is not included, and since many mono cameras and common T-thread accessories use M42, plenty of buyers will need that one extra part before their first session. Second, it weighs 1.9 pounds — roughly double the lighter Astromania wheels — which adds real load to a focuser and demands a sturdy rack, especially when paired with a heavier cooled mono camera. It also assumes you already own or will buy 2-inch filters, which carry a cost premium of their own. For the right setup, though — a large-sensor mono camera, a robust focuser, and a growing collection of 2-inch filters — this model is better suited to the job than anything else in this comparison.
Pros:- Accepts 2-inch filters, preventing vignetting on larger mono sensors
- Light-tight aluminum housing blocks stray light during long exposures
- Includes adapters for eyepieces, focusers, and M48 camera connections
- Numbered wheel with rotation lock ring keeps filter positions secure and identifiable
Cons:- M48-to-M42 adapter is not included despite M42 being common on mono cameras
- At 1.9 pounds, it places substantial load on the focuser
- No filters included, and 2-inch filters cost more than 1.25-inch equivalents
Best for: Imagers with larger mono sensors who need 2-inch filters and a light-tight, rigidly built wheel
Not ideal for: Buyers on a tight budget, small-sensor setups where 1.25-inch filters suffice, or focusers that cannot handle nearly two pounds of hanging weight
- Filter size:2 inches
- Filter positions:5
- Housing:Aluminum, light-tight
- Included accessories:2-inch eyepiece adapter, focuser nosepiece, conversion interface, M48 camera adapter, rotation lock ring
- Weight:1.9 pounds
- Warranty:1 year
- Brand:SVBONY
- Model:SV133
Our verdict“The strongest build in the lineup and the only 2-inch option — worth it for large mono sensors, overkill for small ones.”

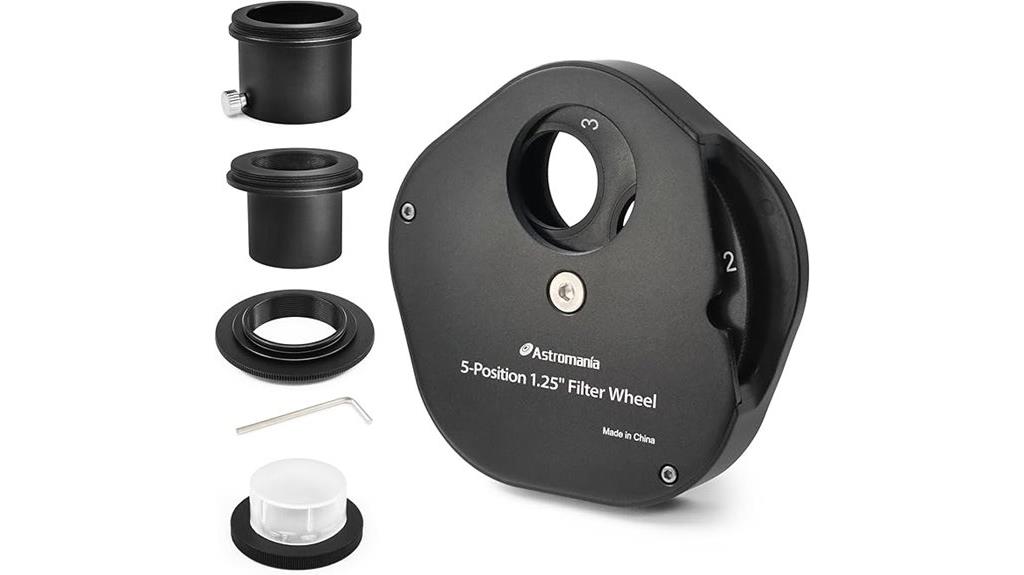

Astromania 1.25-Inch Telescope Filter Wheel with T2 and Eyepiece Adapters
Of the three wheels here, this is the one I would hand to the observer whose telescope serves both visual sessions and occasional mono imaging. Unlike the LRGB bundle, it leaves all five positions free for your own filters — planetary color filters for visual nights, an LRGB or narrowband set for imaging nights — and unlike the SV133, it does not ask you to invest in 2-inch glass. That flexibility, plus its lighter 13-ounce build, makes it the easiest wheel in this lineup to live with on a modest focuser.
The included adapter package is generous for the price tier: a 1.25-inch eyepiece adapter lets you keep the wheel in the chain visually, while the nosepiece and T2 camera adapter connect it directly to a mono body. Numbered positions around the wheel help you track which filter is in the light path without pulling the assembly apart, which is a small convenience that becomes genuinely valuable during a cold imaging session. Compared with the LRGB bundle from the same brand, the practical difference comes down to how you want to spend: this wheel holds five filters but includes none, while its sibling includes four filters but only threads into four positions. If you already own filters, this model is the smarter buy; if you own none, the bundle wins.
The honest drawback is the 23 mm inward focus travel requirement — the deepest of the three wheels here. Newtonian reflectors in particular often sit close to their focus limits, and some owners find the wheel simply cannot reach focus without a low-profile focuser or a modified configuration. Refractors and SCTs with their generous travel ranges handle it without complaint. The wheel body is also not marketed as light-tight in the way the SV133 is, so imagers chasing the cleanest long exposures may notice minor internal reflections. For a mixed visual-and-imaging setup that already has filters on the shelf, though, this pick makes the most sense as the budget-friendly backbone.
Pros:- All five positions available for your own filter selection
- Works for both visual observing and astrophotography
- Includes eyepiece adapter, nosepiece, and T2 camera adapter
- Light 13.37-ounce build is easy on modest focusers
Cons:- Requires 23 mm of inward focus travel, the most in this lineup
- May not work with some Newtonian reflectors
- No filters included
Best for: Visual observers and mono imagers who already own 1.25-inch filters and want maximum slot capacity on a budget
Not ideal for: Newtonian owners with tight focus travel, or imagers who need a complete filter set included
- Filter positions:5
- Compatible filter size:1.25 inches
- Included adapters:Eyepiece adapter, nosepiece, T2 camera adapter
- Connection options:1.25-inch nosepiece or T-thread
- Required inward focus travel:23 mm
- Weight:13.37 ounces
- Brand:Astromania
- Model:SKU_AM_FW1M5
Our verdict“The most flexible and affordable option here — five open slots and dual-purpose adapters, provided your focuser can spare the 23 mm of travel.”
How We Picked
My selection process started with a simple filter: does this wheel actually make sense for a monochrome camera workflow? Mono sensors depend on external filters for any color data, so a wheel that forces you to break the optical chain mid-session undermines the whole point. I prioritized models that let you rotate filters without removing the camera, and I favored bundles that include an LRGB set, because buying filters separately often costs more than the wheel itself. From there, I compared build material — aluminum housings resist flexure and stray light better than plastic alternatives — and the adapter package each wheel ships with, since compatibility problems are the most common complaint with budget wheels. Back-focus requirements got close attention too: a wheel demanding 23 mm of inward travel can be unusable on certain Newtonians, and I wanted readers to know that before ordering. I also weighed filter size. Small mono sensors work fine with 1.25-inch filters, but larger sensors vignette behind them, so a 2-inch wheel earns its place for a specific reason rather than existing as a generic upgrade. Finally, I looked at versatility — whether each wheel doubles for visual observing, which matters for anyone whose telescope serves double duty.
| filter wheels and filter sets for mono camera | Brand | Model |
|---|---|---|
| Astromania 1.25-Inch 5-Positio | Astromania | — |
| SVBONY SV133 2-Inch 5-Position | SVBONY | SV133 |
| Astromania 1.25-Inch Telescope | Astromania | SKU_AM_FW1M5 |
Factors to Consider When Choosing Filter Wheels And Filter Sets For Mono Cameras
Choosing between these three wheels comes down to a handful of decisions that have nothing to do with brand loyalty. Here is how I would work through them.Filter Size and Your Sensor
The single biggest decision is 1.25-inch versus 2-inch filters, and your mono sensor makes it for you. Small and mid-size sensors — the kind common on entry-level mono planetary and deep-sky cameras — sit comfortably behind 1.25-inch filters with no vignetting. Larger sensors have diagonals that exceed a 1.25-inch filter’s clear aperture, producing darkened corners that no amount of processing fully removes. If your sensor is large, the SV133 is effectively your only choice in this lineup. If it is small, paying for a 2-inch wheel buys you nothing except heavier glass down the line.
Back-Focus and Focus Travel
Every wheel in this comparison consumes inward focus travel — 20 to 23 mm — because it physically spaces the camera farther from the focuser. Refractors and Schmidt-Cassegrains generally have plenty of spare travel to absorb this. Newtonian reflectors frequently do not, and a wheel that cannot reach focus is an expensive paperweight. Before buying any wheel, rack your focuser fully inward with your camera attached and check how much travel remains. The LRGB bundle’s 20 mm requirement is the friendliest of the three; the basic Astromania’s 23 mm is the tightest.
Filters Included or Filters Owned
Do the arithmetic on filters before choosing a wheel. If you own no astro filters, the LRGB bundle almost always wins on cost, because buying four decent filters separately typically exceeds the price gap between the two Astromania wheels. If you already have a filter collection, paying for a bundled set duplicates what you own — the five-slot basic wheel becomes the rational choice. And if you are committed to 2-inch filters, remember that the SV133 ships with none, so budget for the glass separately.
Weight and Focuser Load
A wheel adds both its own weight and a long lever arm to your focuser. The basic Astromania wheel at 13.37 ounces is gentle on modest focusers. The SV133 at 1.9 pounds nearly doubles that before you attach a cooled mono camera, and a struggling focuser will slip or tilt under that load. Match the wheel’s weight to your focuser’s capacity, not just to your filter size preference.
Visual Use Versus Imaging Only
All three wheels support eyepiece use through included adapters, but they differ in how well that works in practice. The basic Astromania with its five open slots and eyepiece adapter is the most natural dual-purpose tool for planetary observers who also image. A wheel dedicated to mono imaging gains little from visual features — if your telescope lives under a camera, weight and light-tightness matter more than eyepiece conveniences, which favors the SV133.
Frequently Asked Questions
Why does a monochrome camera need a filter wheel at all?
A monochrome sensor records only brightness, not color, so every color image you produce from one depends on shooting separate frames through red, green, blue, and typically luminance filters, then combining them in software. Swapping those filters by hand means unscrewing them in the dark, re-coupling the camera, and often re-focusing between each filter — a process that wastes imaging time and introduces alignment errors. A filter wheel keeps all your filters mounted and rotates them into the light path without breaking the optical chain, which keeps your framing identical across channels. For mono work specifically, a wheel is less an accessory than a core part of the imaging train, since the entire color workflow depends on rapid, repeatable filter changes.
Will one of these filter wheels work on my Newtonian reflector?
Possibly, but Newtonians are the riskiest telescopes for filter wheels, and you should check before buying. All three wheels here consume 20–23 mm of inward focus travel, and Newtonians often sit close to their focus limits because the primary mirror position is fixed and the focuser travel range is short. The Astromania LRGB bundle is the friendliest at 20 mm, while the basic Astromania wheel needs 23 mm and is explicitly noted as potentially incompatible with some Newtonians. To check yours, rack your focuser fully inward with the camera attached and see how much travel remains — if the wheel’s requirement fits within that margin, you are fine. If not, a low-profile focuser or moving the primary mirror up in its tube can sometimes recover the needed travel.
Are the included LRGB filters in the Astromania bundle good enough for serious imaging?
They are best described as capable entry-level filters rather than premium glass. For a first mono setup, they will absolutely produce satisfying color images — the LRGB process works the same whether the filters cost a little or a lot, and the difference shows up mainly in contrast, coating quality, and off-band leakage. Imagers chasing maximum signal or working under light-polluted skies eventually upgrade to premium or narrowband filters, and the wheel itself remains perfectly usable with whatever glass you thread into it later. My practical advice is to treat the included set as a working starter kit: learn the LRGB workflow with it, and if mono imaging hooks you the way it hooks most people, upgrade filters as a later, separate decision rather than overbuying on day one.
Is a 2-inch filter wheel worth it over a 1.25-inch one?
It depends entirely on your sensor size, not on image quality in the abstract. A filter only needs to cover the sensor’s diagonal with some margin; if a 1.25-inch filter’s clear aperture fully covers your sensor, a 2-inch filter produces an identical image while costing and weighing more. The upgrade becomes necessary when your sensor diagonal approaches or exceeds that 1.25-inch clear aperture — at that point, 1.25-inch filters vignette the corners of every frame, and no processing trick removes the gradient cleanly. Large-sensor mono cameras are therefore the natural pairing for the 2-inch SV133, while small-sensor planetary and entry-level deep-sky mono cameras gain nothing from it beyond heavier, pricier filters and a heavier wheel.
Can I use these filter wheels for visual observing as well as imaging?
Yes — all three wheels ship with eyepiece adapters specifically for this, though they suit the dual-use case to different degrees. The basic Astromania wheel is the strongest visual performer of the group because its five open slots let you load whatever planetary and lunar color filters suit your observing habits, and its light build pairs well with eyepieces. The LRGB bundle works visually too, but its filters are imaging filters rather than visual planetary color sets, so you would be filling the spare slot or adding your own. The SV133 handles visual use fine with its 2-inch eyepiece adapter, but its weight and price make it an awkward choice for a purely visual observer. If your telescope splits time between your eye and a camera, the basic Astromania is the pick I would point you toward.
Conclusion
Matching the right wheel to your situation is straightforward once you know your priorities. If you are starting a mono imaging setup from scratch, the Astromania LRGB bundle is the clear choice — it solves filter switching and filter acquisition in one purchase, and its 20 mm focus requirement is the gentlest of the three. If you run a large-sensor mono camera where 1.25-inch filters vignette, the SVBONY SV133 is the only real option here, and its light-tight aluminum build justifies the premium — just remember to add an M48-to-M42 adapter and budget for 2-inch glass. If you are a visual observer who dabbles in imaging, or a mono imager who already owns filters, the basic Astromania wheel offers five open slots and dual-purpose adapters at the lightest weight in the lineup, provided your focuser can spare 23 mm of travel. Whichever direction you take, measure your focus travel and check your sensor size before ordering — those two facts settle this decision more reliably than any spec sheet.
